Primary or Secondary Loop

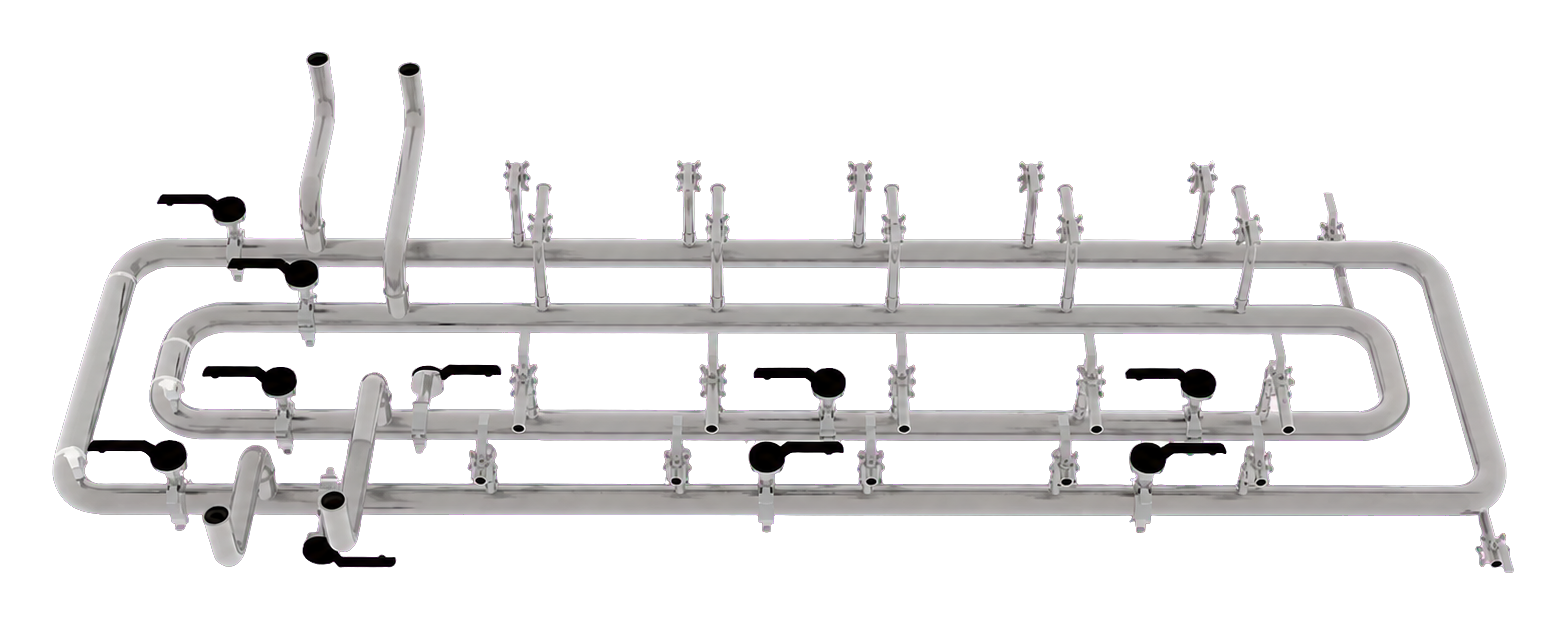

Prefabricated Pipeline

Factory-welded, pickled, passivated, and cleaned stainless piping assemblies for cleaner installation and reduced field welding.

Discuss Piping Layout Back to Products Technical Catalog

Product Overview

CDU-to-rack pipe assemblies with less field welding.

Secondary-side piping connects the CDU with each liquid cooled rack, delivering coolant from the CDU and returning it after heat is absorbed at the IT load. If the CDU is the system heart, the secondary piping network is the circulatory path that makes the rack loop operate reliably.

Clean

Inert gas shielded welding, pickling/passivation, and ultrasonic cleaning support loop cleanliness.

Reliable

Stainless body construction, borescope or X-ray inspection, and pressure testing support leak-tight integrity.

Flexible

Compatible with butterfly valves, ball valves, sensors, air release valves, and top or bottom rack connections.

Fast Field Work

Prefabricated assemblies use pipe splicing joints and adjustable brackets to reduce on-site complexity.

DLP Catalog Range

Model	Customized
Load capacity	200-20000 kW / 268-26800 HP
Main pipe diameter	DN50-DN500 / 2-20 in.
Pressure resistance	1 MPa / 145 psi
Main material	SUS304 or 316L
Temperature range	41-149 F
Applicable media	Water / PG (project-specific concentration)

Secondary Piping Architecture

Modular piping for repeatable rack rows.

DLP secondary piping can be configured around facility architecture, rack spacing, CDU position, rack height, coolant selection, and service access. A standard design can use every two racks as one repeatable module and duplicate that module to match the final rack count.

Custom CDU location, footprint, and connection interface
Automatic air release and drain valve options for easier O&M
PG concentration selected for project climate and material compatibility

Secondary Piping Configuration

Body spec	OD <= 500 mm; NPS per ASME B36.19 or DN GB B-Series
Material	SUS304 or SUS316
Operating pressure	116 psi / 8 bar or 145 psi / 10 bar
CDU port	Flange, Tri-Clamp ferrule, or grooved coupling
Rack port	Tri-Clamp OD 50.5 / 64 / 77.5 mm or barb 1 / 1.5 / 2 in.
Main valve	Butterfly valve options with SUS304, SUS316, or cast iron body
Air bleeders	2-4 pcs depending on loop design
Supports	Single-point clamp or U-bolt bracket options

Installation Scope

Designed for prefabricated liquid cooling distribution.

Assemblies can be configured for primary or secondary side loops, with automatic exhaust and drain devices added where the design requires.

Factory Process

Welding, passivation, and cleaning are completed under controlled production conditions.

Inspection

JR's own X-ray flaw detection capability supports reliable quality verification.

Field Friendly

Quick docking of flanges or ferrules supports faster installation and maintenance planning.
